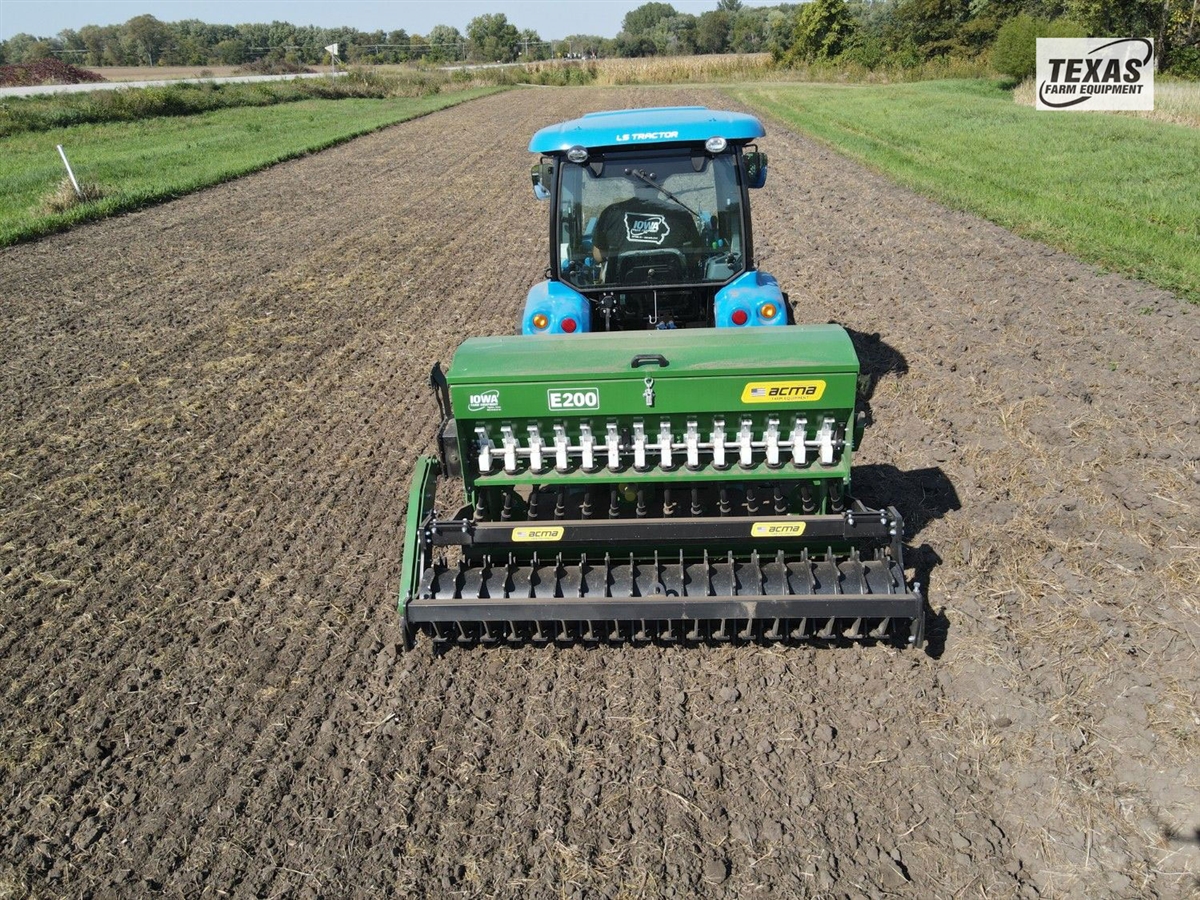

ACMA R300, 10' Power Harrow w/Seeder & XW Packer Roller: 80-130HP, Quick Hitch Compatible

Heavy Duty Professional Series, 10' ACMA R300 Power Harrow With Dual Box Seeder & Hyd Controlled XW Packer Roller For 'On-The-Fly' Working Depth Control - Quick Hitch Compatible.

• ACMA Power Harrows Always Have the Highest Population of Blades to Provide the Best Possible Soil Conditioning & to Reduce the Burden on Your Tractor!
• Quick Hitch Compatible!
• Heavy Duty Side Plates:
• Vertically Adjustable to Reduce Resistance & Wear When Using in Deep Tillage Applications.
• Laterally Hinged To Allow Rocks/Debris To Escape & Prevent Lodging & Spring Tensioned For Return.
• 'On-The-Fly' Working Depth Adjustment With Hydraulically Adjusted XW (Extra-Wide) Packer Roller:
• XW (Extra Wide) Packer Roller Eliminates Soil Ridges From Being Left Behind The Side Plates.
• Packer Roller Also Provides Soil Conditioning.
• Greaseable Top Rotor Hub Bearings, With Oil Bath Lubrication For Bottom Rotor Hub Bearings!
• Easy Top Access Rotor Hubs.
• 2 Blades Per (Round) Blade Carrier.
• Heavy Duty Clevis Style Pull Arm Hitches.
• Power Harrow Ships Complete Including a 540RPM, Shear Bolt Protected PTO Shaft!

• 23Bu Capacity: Primary Box @13Bu, Secondary Box @10Bu.
• Dual Hopper Seed Box Eliminates the Need for a Second Pass When Planting Various Seed Sizes with Differing Flow Rates or Use Both Hoppers For Maximum Capacity!
• Suitable For Most All Grass Seeds, From Alfalfa to Corn & Beans!
• Hoppers Can Be Used For Granulated Fertilizers.
• Built in Agitator Prevents Bridging, Ensures Consistent Flow Rate of Seeds, and Provides Some Blending of Mixed Seed Types.
• Not Recommended For Warm Season Grass Seeds.
• 40 Hopper Openings (20 from each box) Each Flow Thru a '4-Position Manual Slide Gate' For Each Opening, Then Into Individually Adjustable Seed Meters.
• Slide Gates & Seed Metering Adjustments Are Tool Free Field Adjustable!
• After Passing Thru the Seed Metering Devices, Seeds Flow Down the Drop Tubes (Secured to a Rigid 10' Channel) For Placement Onto the Beautiful Seedbed Made By the Power Harrow. Then the (Hydraulically Controlled) Packer Roller Follows to Ensure Excellent Ground Contact For Maximum Germination!
• All This In One Efficient & Timely Pass!
• To Adjust Drop Tube Spacing, Any of the Hopper Openings Can be Closed Tool Free With the '4-Position Slide Gate' at Each Opening.
• Handle at End of Each Seed Hopper for Manually Opening or Closing Total Seed Flow (On/Off) at the Bottom of Each Individual Seed Hopper:
• Handles Are At Opposite Ends; Right Side for Rear Box, Left Side For Front Box.
• Handles For Speed Control For Seeding Rate Are Also on Opposite Ends for Each Box.
• Mechanical Seed Level Indicators Are Adjustable and Visible To Tractor Operator.

• Category 2, Quick Hitch Compatible, 3-Point Hitch.
• 540RPM Gearbox is Rated for 80 to 130PTO HP.
• H.D. Gearbox Output Shaft is 1-3/4" x 6 Spline.
• Blade Holder 'Rotor' Speed @323RPM's.
• 8 Gear Box Speeds @ 540RPM: 169, 182, 196, 210, 323, 348, 374 & 403.
• 4 Gear Box Speeds @ Optional 1000RPM: 312, 336, 362 & 389.
• Working Width: 10'.
• Overall Width: 10'-8".
• Working Depth is 11"!
• Power Harrow Has 12 Blade Holders with 2 Blades Per Holder for a Total of 24 Blades.
• Weight with Roller & Seeder: 4,210lbs (Less PTO Shaft, Pallet/Crating, etc.).
• Specifications are based on manufacturer provided data & subject to change.
