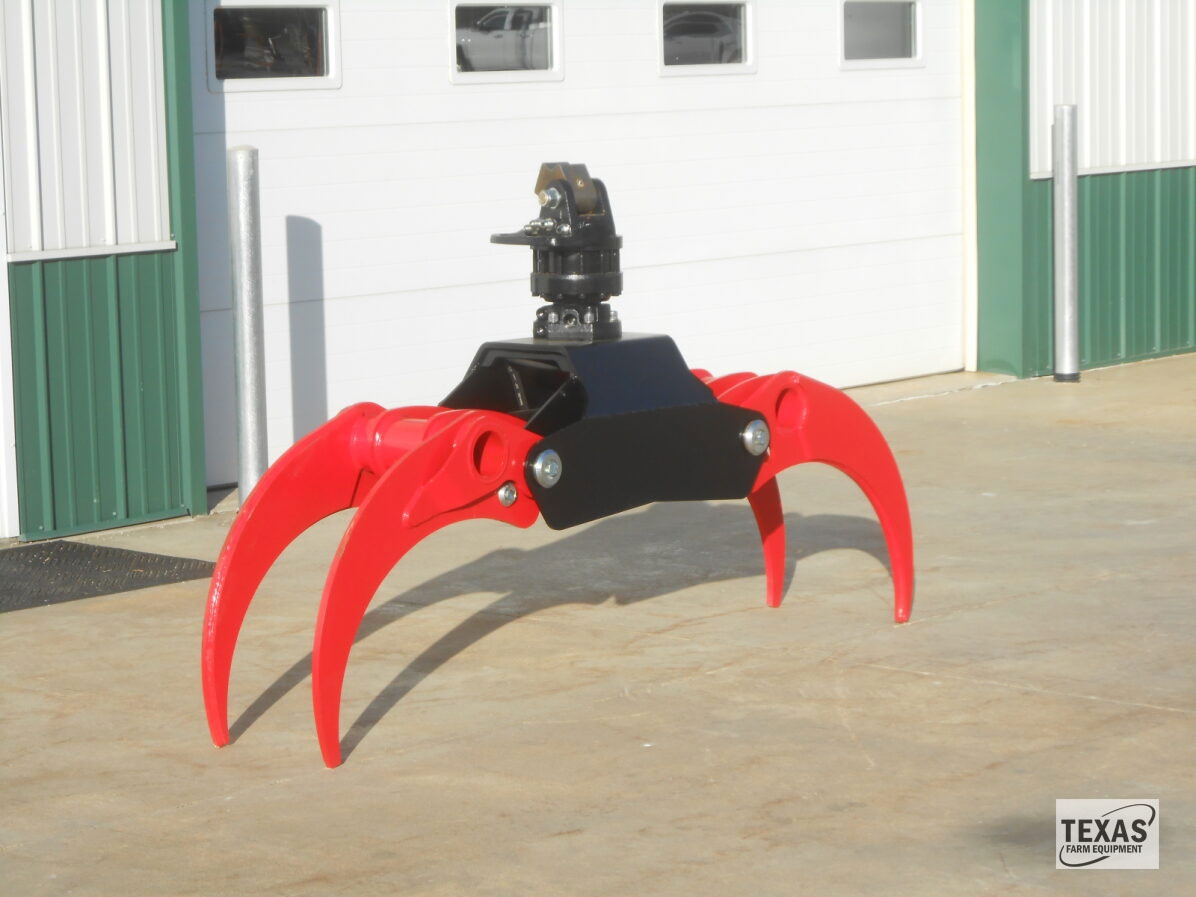

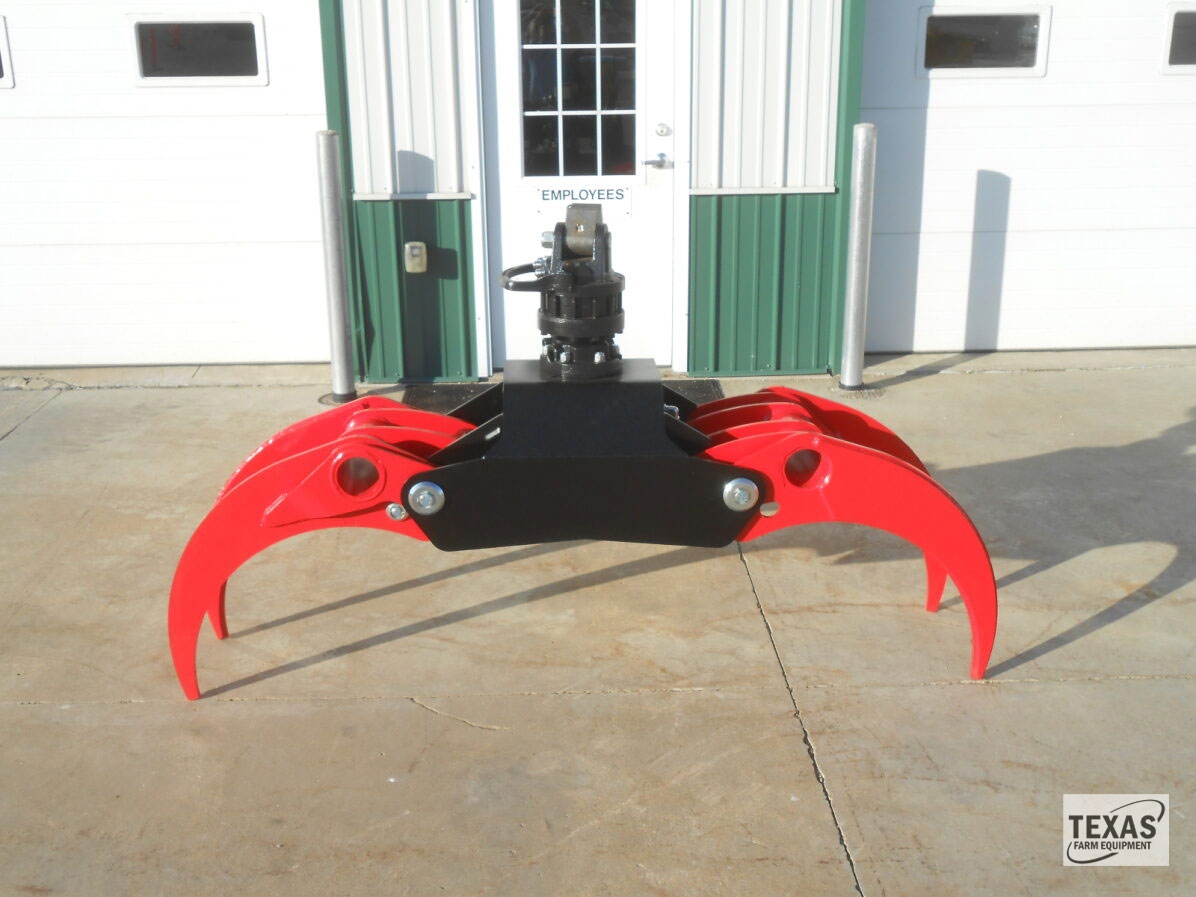

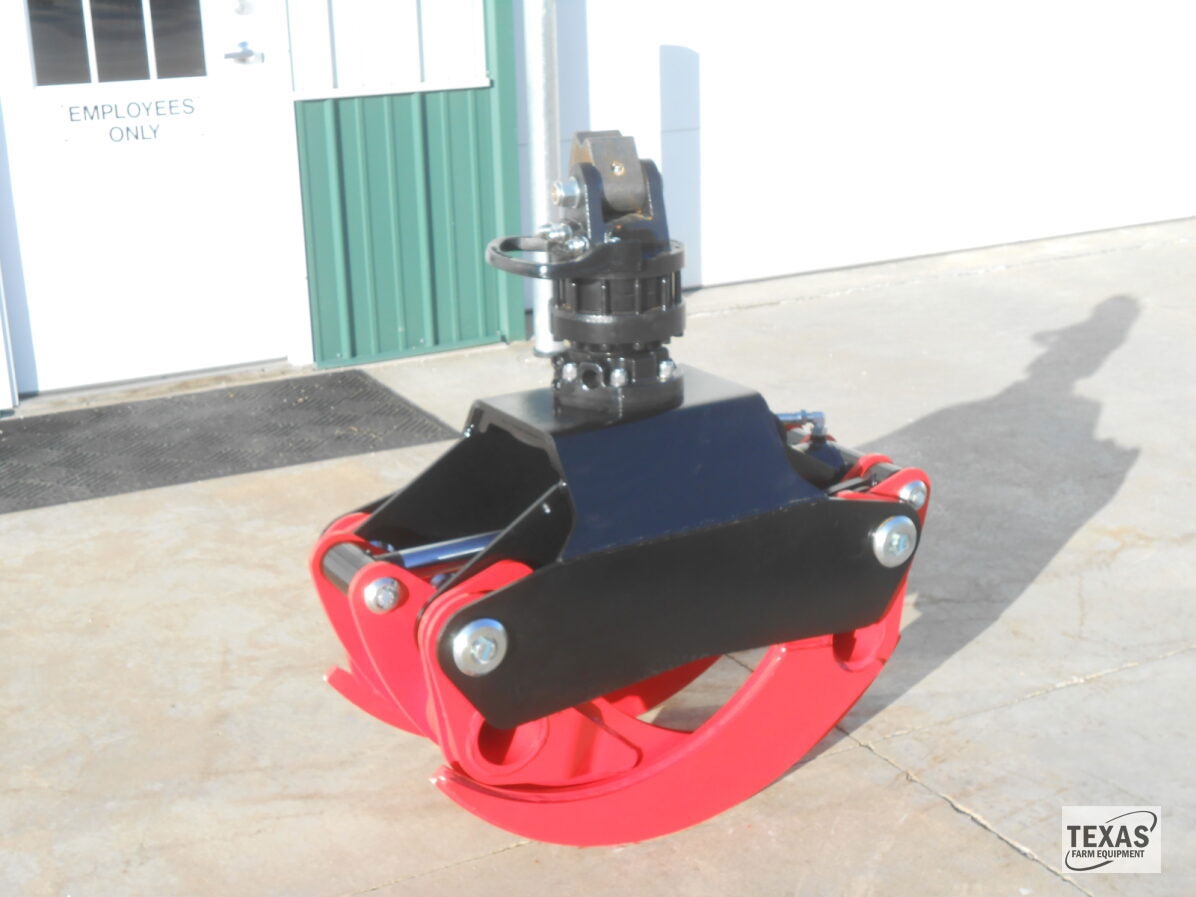

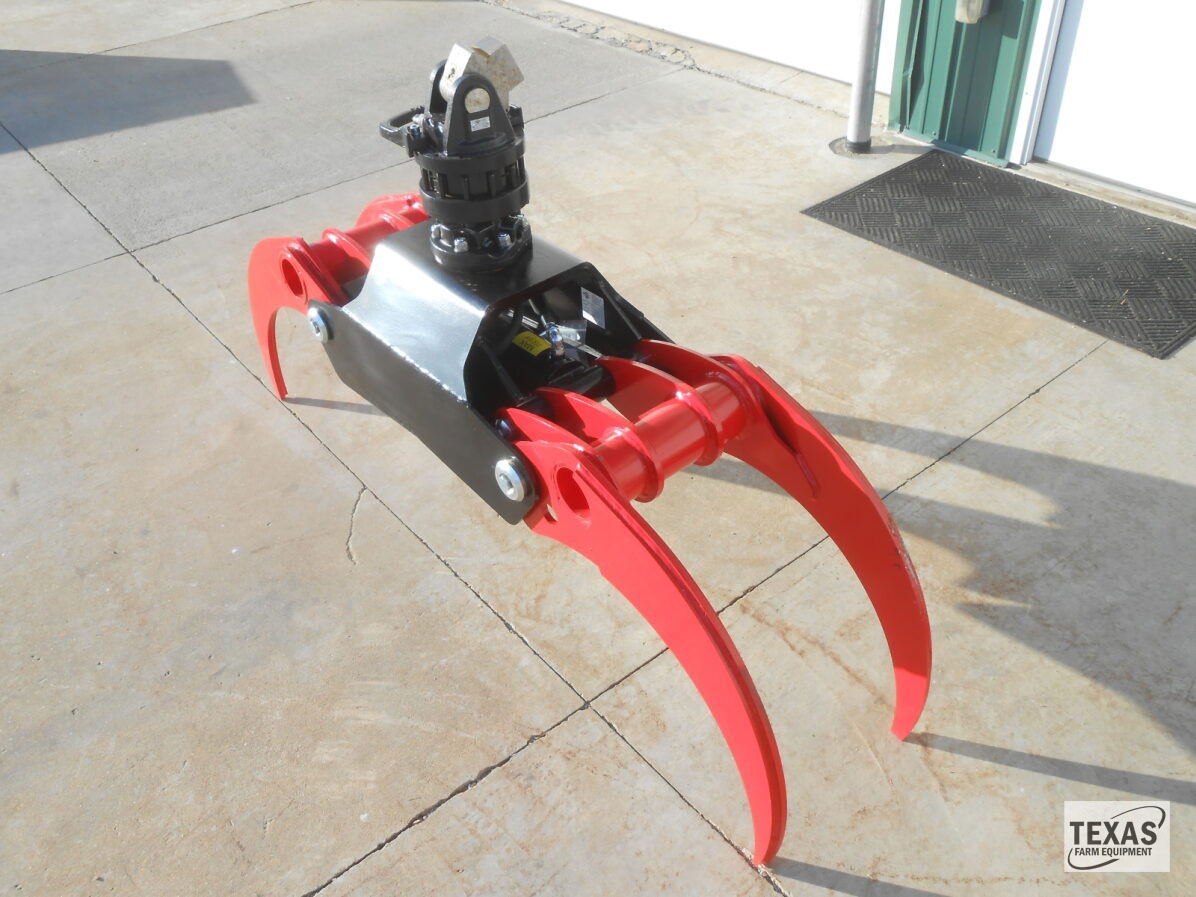

IFE 4T81, 81" Bypass Log Grapple & Rotator: Universal Log, Scrap, Stone Grapple!

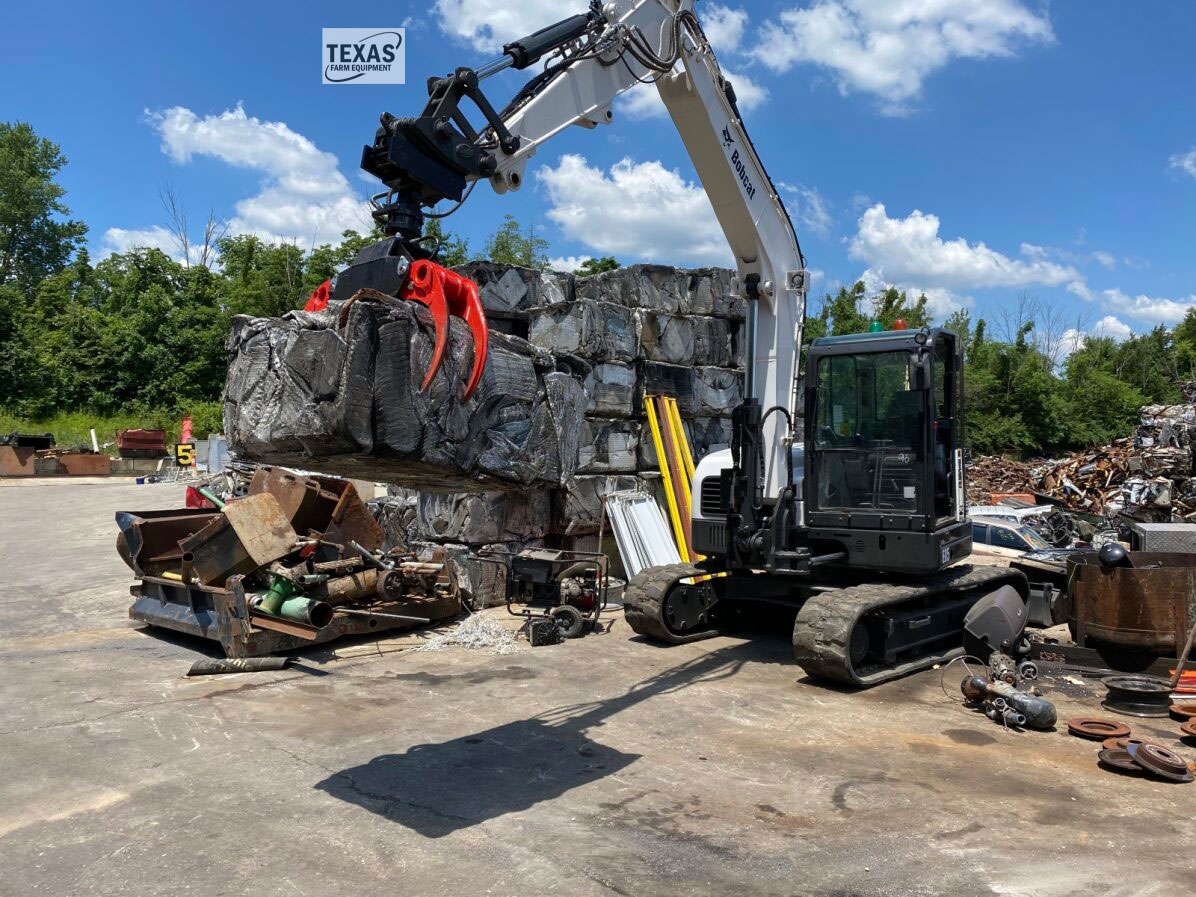

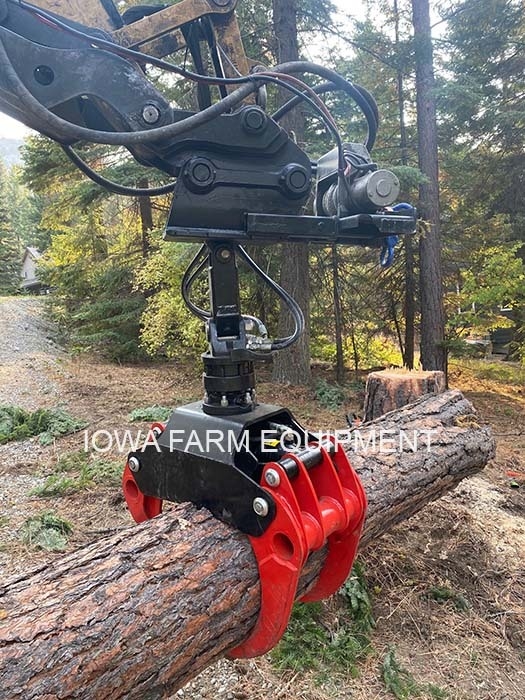

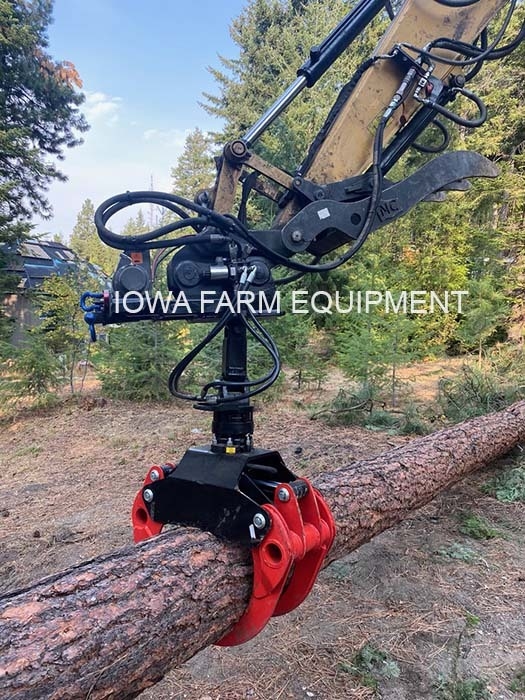

IFE 4T81 HEAVY DUTY, Universal 81" Pinching Or Bypass 4-Tine Log & Stone Grapple With HR36011 Hydraulic Rotator & Half Hanger: Suitable For Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!

• Rotator Turns 360° CONTINUOUSLY in Both Directions - Clockwise & Counter Clockwise!
• Maximum Working Load: 24,200lb's.
• Suitable For Most Applications on 10 to 20 Ton Machines.
• Moderate Applications Would Be Primarily Vertical Lifting of Material.
• In Rigorous Skidding Applications, The 24,200lb's Working Capacity Can Quickly Be Surpassed. For Those Applications, Consider Upgrading To The HR36016 Rotator.
• Max Working Pressure is 3629psi.
• Half Hanger is Included & Shown Attached to Top of Rotator in Photos:
• Half Hanger Weight: 17lb's.
• Overall Width of Rotators Mounting Boss: 5-1/8".
• Rotators Boss Pin Hole is 15/16" Diameter.
• Rotator Weight: 139lb's.
• This Listing is For The Grapple & Rotator Only - All Other Machines & Attaching Systems Are For Reference Only!
• Specifications are based on manufacturer provided data & subject to change.

• Dual Cylinders For Claw Operation.
• Maximum Opening: 81".
• Minimum Opening: 6.7".
• Maximum Lift Capacity: 11,000lb's.
• Height (grade to top of Grapple) in Open Position: 35".
• Height (grade to top of Grapple) in Closed Position: 26".
• Overall Width of Claw: 21".
• Maximum Working Pressure: 3625psi.
• Grapple Weight: 771lb's.
• Specifications are based on manufacturer provided data & subject to change.
