IFE 4T55, 55" Bypass Log Grapple & Rotator: Universal Log, Scrap, Stone Grapple!

IFE 4T55 HEAVY DUTY, Universal 55" Pinching Or Bypass 4-Tine Log & Stone Grapple with HR3605FLG Hydraulic Rotator & Half Hanger: Suitable for Brush, Logs, Scrap, Stone, RR Ties, Waste - Most Anything!

• Rotator turns 360° CONTINUOUSLY in both directions - Clockwise & Counter Clockwise!
• Maximum Working Load is 11,000lb's.
• Suitable for Most Applications on 8 to 10 Ton Machines.
• Moderate Applications would be primarily Vertical Lifting of Material.
• In rigorous Skidding Applications, the 11,000lb's Working Capacity can quickly be Surpassed. For those Applications, consider upgrading to the HR3607 or HR36011 Rotators.
• Max Working Pressure is 3629psi.

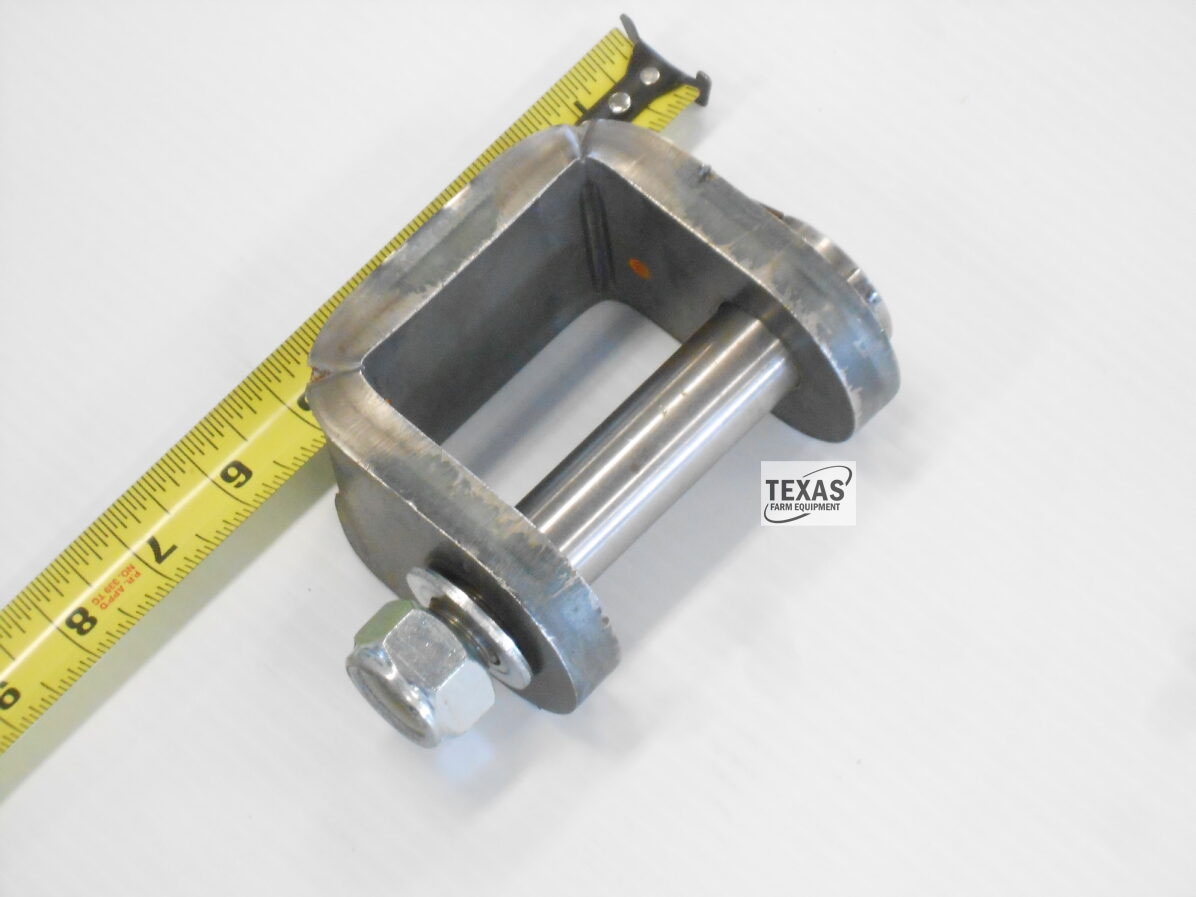

• Half Hanger is included & shown in last 2 Photos:
• 1 Photo shows just Hanger & Pin, 1 Photo is Attached to Top of Rotator.
• Overall Width of Rotators Mounting Boss is 2-3/4".
• Rotators Boss Pin Hole is 15/16" Diameter.
• Rotator Weight: 72lb's.
• This Listing is For The Grapple & Rotator Only - All Other Machines & Attaching Systems Are For Reference Only!
• Specifications are based on manufacturer provided data & subject to change.

• Maximum Opening: 55".
• Minimum Opening: 3".
• Maximum Lift Capacity: 5500lb's.
• Height (grade to top of Grapple) in Open Position: 26".
• Height (grade to top of Grapple) in Closed Position: 18".
• Overall Width of Claw: 13".
• Maximum Working Pressure: 3625psi.
• Grapple Weight: 268lb's.
• Specifications are based on manufacturer provided data & subject to change.
